Getting started with STIsim

STIsim is an agent-based modeling framework for sexually transmitted infections, built on top of Starsim. It provides disease models (HIV, syphilis, chlamydia, gonorrhea, trichomonas, BV), structured sexual networks with risk groups, demographics, and interventions.

STIsim follows the Starsim philosophy: common tasks should be simple. Creating and running a simulation takes just a few lines of code.

Hello world

The simplest way to create an STIsim simulation is to pass a disease name as a string. Here we’ll simulate gonorrhea:

import stisim as sti

sim = sti.Sim(diseases='ng')
sim.run(verbose=0)
sim.plot(key=['ng.new_infections', 'ng.prevalence'])

Initializing sim with 1000 agents
Figure(768x576)

Here we provided specific keys to plot (ng.new_infections and ng.prevalence). You can also call sim.plot('ng') to see all the high-level gonorrhea results, or just sim.plot() to see everything. For more on working with results, see the Results and plotting tutorial.

Three lines of code: create, run, plot. But a lot just happened behind the scenes. Let’s unpack what’s in the box.

What’s in the box

When you call sti.Sim(diseases='ng'), STIsim creates a complete simulation with sensible defaults. Here’s what gets set up automatically:

Simulation parameters

The simulation runs from 2000 to 2030 with monthly timesteps and 1,000 agents by default. You can inspect these:

sim = sti.Sim(diseases='ng')
sim.init()

print(f'Start:    {sim.pars.start}')
print(f'Stop:     {sim.pars.stop}')
print(f'Timestep: {sim.pars.dt} years ({sim.pars.dt*12:.0f} month)')
print(f'Agents:   {sim.pars.n_agents}')

Initializing sim with 1000 agents
Start:    2000
Stop:     2030
Timestep: 0.08333333333333333 years (1 month)
Agents:   1000

Networks

Two networks are created automatically:

StructuredSexual: The main sexual contact network. Agents are assigned to risk groups (low, medium, high), form partnerships of different types (stable, casual, one-time, sex work), and have age-based partner preferences. See the Networks documentation for details.
MaternalNet: A mother-to-child transmission network (from Starsim).

for name, nw in sim.networks.items():
    print(f'{name}: {type(nw).__name__}')

structuredsexual: StructuredSexual
maternalnet: MaternalNet

Disease

The string 'ng' was looked up and converted into an sti.Gonorrhea module with default parameters (transmission rate, initial prevalence, symptom probabilities, clearance durations, etc.). See the Diseases documentation for the full parameter tables.

ng = sim.diseases.ng
print(f'Disease: {type(ng).__name__}')
print(f'Transmission (M to F): {ng.pars.beta_m2f}')
print(f'Initial prevalence: {ng.pars.init_prev}')
print(f'Condom efficacy: {ng.pars.eff_condom}')

Disease: Gonorrhea
Transmission (M to F): 0.06
Initial prevalence: ss.bernoulli(p=0.01)
Condom efficacy: 0.9

Demographics

By default (without a location string), no demographic modules are created – there are no births, deaths, or migration. This keeps the default sim fast and simple. To add demographics, either pass modules directly or provide a location string:

print(f'Demographics: {dict(sim.demographics)}')
print(f'(Empty by default -- pass demographics="zimbabwe" to auto-load demographic data)')

Demographics: {}
(Empty by default -- pass demographics="zimbabwe" to auto-load demographic data)

Customizing the simulation

There are multiple ways to configure a sim, depending on how much control you need.

Passing parameters inline

The simplest way – pass keyword arguments directly:

sim = sti.Sim(
    diseases='ng',
    n_agents=2000,
    start=2010,
    stop=2025,
)
sim.run(verbose=0)

Initializing sim with 2000 agents

Sim(n=2000; 2010—2025; networks=structuredsexual, maternalnet; diseases=ng)

Passing disease-specific parameters

Use sti_pars to override disease defaults without creating the disease object yourself:

sim = sti.Sim(
    diseases=['ng', 'ct'],
    sti_pars=dict(
        ng=dict(init_prev=0.05),
        ct=dict(init_prev=0.08),
    ),
)
sim.run(verbose=0)

Initializing sim with 1000 agents

Sim(n=1000; 2000—2030; networks=structuredsexual, maternalnet; diseases=ng, ct)

Using module instances

For full control, create the module objects directly. This is the standard Starsim pattern and gives you access to every parameter:

import starsim as ss

ng = sti.Gonorrhea(beta_m2f=0.08, init_prev=0.03)
nw = sti.StructuredSexual()
pregnancy = ss.Pregnancy(fertility_rate=20)
deaths = ss.Deaths(death_rate=10)

sim = sti.Sim(
    diseases=ng,
    networks=nw,
    demographics=[pregnancy, deaths],
    n_agents=2000,
    start=2010,
    stop=2030,
)
sim.run(verbose=0)

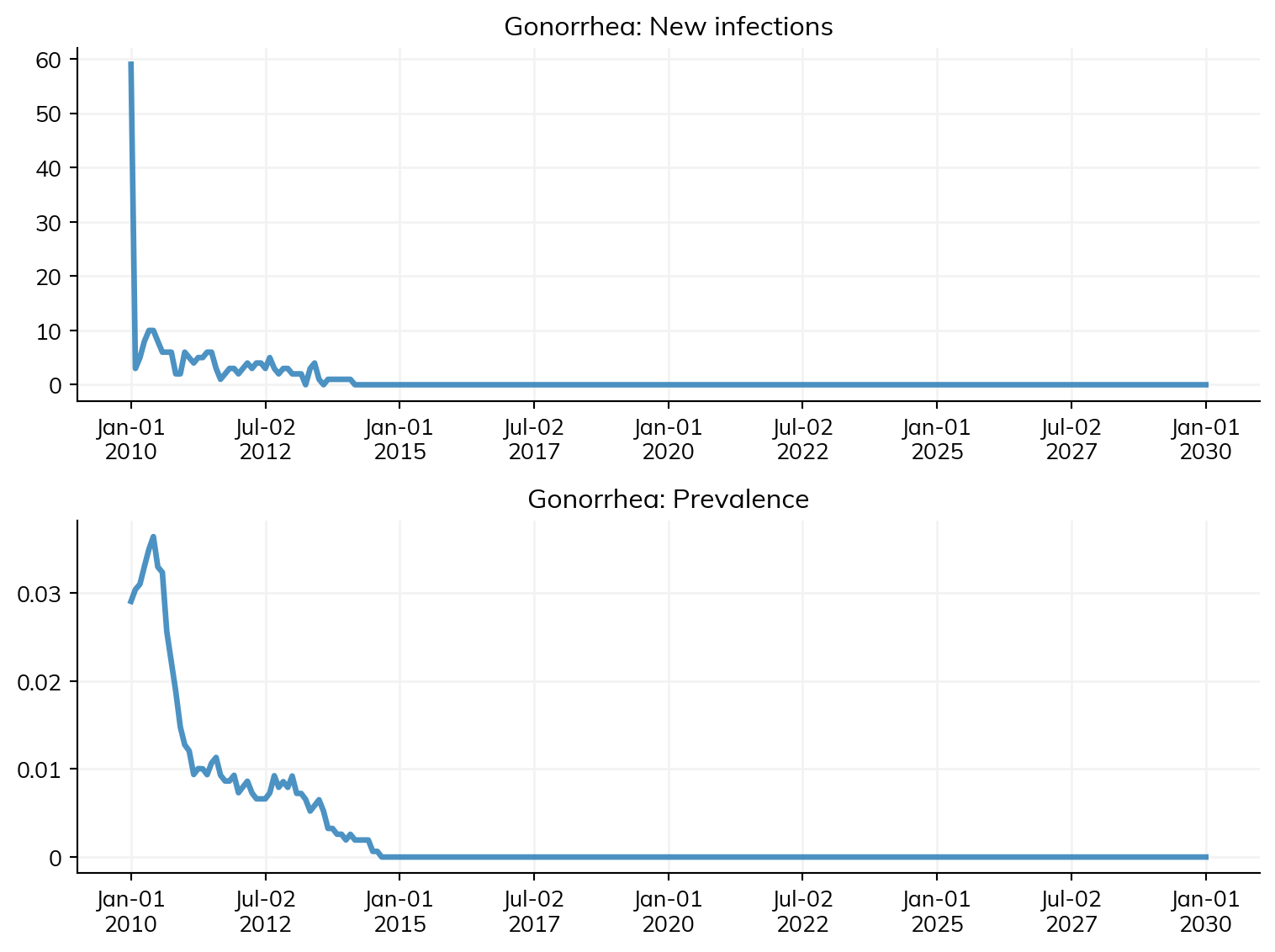

sim.plot(key=['ng.new_infections', 'ng.prevalence'])

Initializing sim with 2000 agents
Figure(768x576)

Available diseases

STIsim includes the following disease modules, which can be passed by name or as instances:

Name	Class	String alias	Type
HIV	`sti.HIV`	`'hiv'`	CD4-based progression
Syphilis	`sti.Syphilis`	`'syphilis'` / `'syph'`	Staged (primary/secondary/latent/tertiary)
Chlamydia	`sti.Chlamydia`	`'ct'`	SEIS
Gonorrhea	`sti.Gonorrhea`	`'ng'`	SEIS
Trichomoniasis	`sti.Trichomoniasis`	`'tv'`	SEIS with persistence
Bacterial vaginosis	`sti.BV`	`'bv'`	CST-based
Genital ulcer disease	`sti.GUD`	`'gud'`	Simple SIS

See the Diseases documentation for state diagrams and parameter tables for each disease.

Exercises

Create a sim with both gonorrhea and chlamydia. Run it and plot the results.
Try changing the gonorrhea transmission rate (beta_m2f) from 0.06 to 0.15 and observe how it affects prevalence.
Add demographics by passing demographics='zimbabwe' and compare the results to the default (no demographics) sim.
